Hi- speed relays
You aren't logged in. (Guest)
1

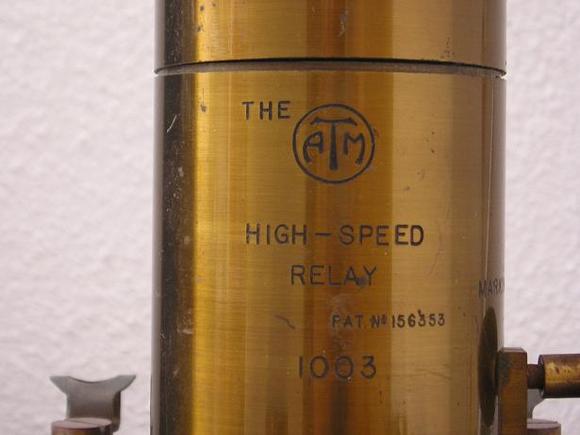

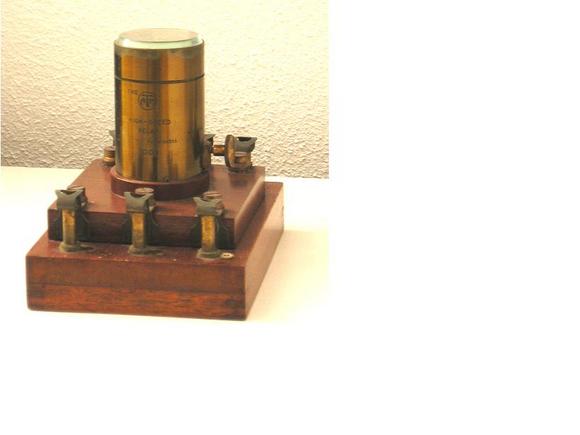

Dear Friends I've here one ATM's Hi-speed Relays. I think its function was a telephonic function. Or was it used to another matters? RF included? Do you know its released year? +/- Thank you for your time Best Regards Mário Coelho
|
Konrad Birkner
D Articles: 1509 Schem.: 229 Pict.: 1289 04.Jan.06 21:49 |
High Speed Relay
You aren't logged in. (Guest)
2
Hi Mario, Could You please sketch the connections of the device? As a first approach I assume either a kind of "microphone amplifier" or a Telegraphic relay having no (or rather no) contact bouncing. This is necessary to restore wire telegraphy signals in particular in high speed (machine) morse or in early telecopy. In Germany such relays bore the name "Telegraphenrelais" and had a response time (bouncing included) of max. 2 milliseconds. They were mainly used in Teletype circuits and systems. (But that was considerably later than Your device.) regards Kobi |
|
Mario Coelho
P Articles: 366 Schem.: 475 Pict.: 897 04.Jan.06 23:44 |
Sketch
You aren't logged in. (Guest)
3
Hi, Thank you for your reply. Schematic is very simple. I only didn't draw one regulator "Marking spacer" that is visible (at right) in last pictures. Best Regards Mário
|
|
Konrad Birkner
D Articles: 1509 Schem.: 229 Pict.: 1289 05.Jan.06 21:54 |
You aren't logged in. (Guest)
4
I think it is a polarised telegraphic relais. regards KoBi |
|
Mario Coelho
P Articles: 366 Schem.: 475 Pict.: 897 12.Jan.06 19:47 |
Rmorg matter?
You aren't logged in. (Guest)
5
Thank You again. However this relais (for telegraphic use) may not be an interesting subject to Rmorg. Do You agree? Cordially Mário |
|
Konrad Birkner
D Articles: 1509 Schem.: 229 Pict.: 1289 13.Jan.06 21:02 |
ATM relay
You aren't logged in. (Guest)
6
Put it in, since the manufacturer is already there, why not. It would find company by a crystal set of mine... |
|
Mario Coelho
P Articles: 366 Schem.: 475 Pict.: 897 18.Jan.06 11:54 |
It is there
You aren't logged in. (Guest)
7
Dear Mr. Konrad It was uploaded. I hope Your cristal set doesn't mind to keep company with one which has so limited performances. (flip and flop) :-) Cordially Mário |
