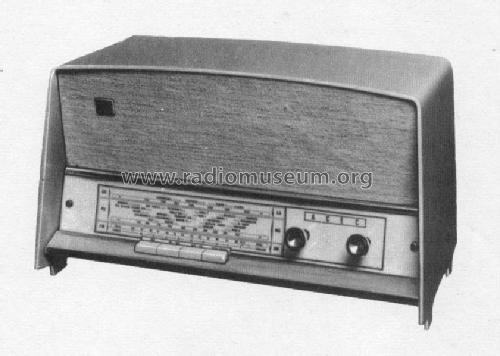

5007; ACEC, Atelier de (ID = 1783685) Radio
ACEC, Atelier de: 5007 [Radio] ID = 1783685 933x649
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5007, ACEC, Atelier de Construction El.; Charleroi

Country:  Belgium
Manufacturer / Brand:  ACEC, Atelier de Construction El.; Charleroi
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 5007 - ACEC, Atelier de Construction
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 200 x 210 mm / 14.2 x 7.9 x 8.3 inch
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
