5012

ID = 79790

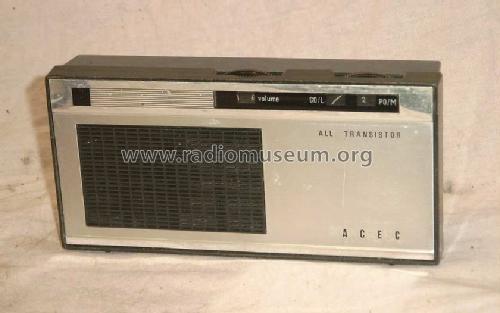

ACEC, Atelier de : 5012 [Radio] ID = 118775 840x527

Country: Belgium	Manufacturer/Brand: ACEC, Atelier de Construction El.
Year: 1968 ??	Type: Radio or Tuner
Transistors	5:

Principle	Super-Heterodyne (Super in general); IF-Freq. 452 kHz
Wave bands	Broadcast (MW) and Long Wave.
Power type and voltage	Dry Batteries / 3 x 1,5 Volt
Loudspeaker/pwr.out	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.3 cm = 2.5 inch
from Radiomuseum.org	Model: 5012
Material	Modern plastics (no Bakelite or Catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)	173 x 85 x 39 mm / 6.8 x 3.3 x 1.5 inch

This model was suggested by Hugo Sneyers.
