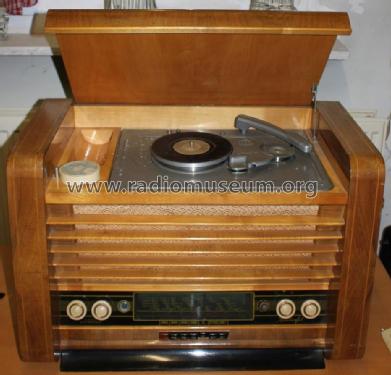

Radiofil 201; ACEC, Atelier de (ID = 1744310) Radio Radiofil 201; ACEC, Atelier de (ID = 1784023) Radio
Use red slider bar for more.
Radiofil 201; ACEC, Atelier de (ID = 887214) Radio
ACEC, Atelier de: Radiofil 201 [Radio] ID = 887214 674x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiofil 201, ACEC, Atelier de Construction El.; Charleroi:
Q = prospectus

Country:  Belgium
Manufacturer / Brand:  ACEC, Atelier de Construction El.; Charleroi
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6K7 6K8 6B8 6V6 6V6 6V6 6V6 5Z3 6SJ7 6Г7 6H6 6E5 6AK5
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details Other Combination - see Notes
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Radiofil 201 - ACEC, Atelier de Construction
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 680 x 39 x 460 mm / 26.8 x 1.5 x 18.1 inch
Notes Radio mit eingebaute Plattenspieler/Tondraht-Gerät
Net weight (2.2 lb = 1 kg) 36 kg / 79 lb 4.7 oz (79.295 lb)
Source of data -- Original prospect or advert

Model page created by Hugo Sneyers. See "Data change" for further contributors.
