• Year
  • 1948 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 31270
    • alternative name: Continental Radio & TV

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite case
  • from Radiomuseum.org

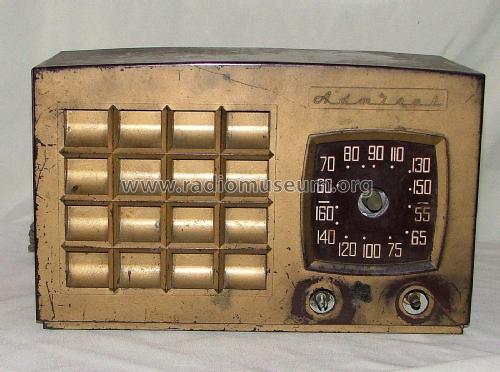

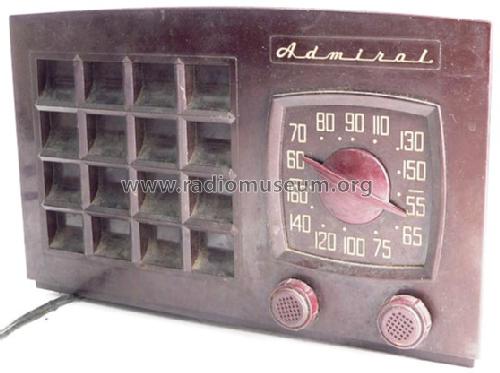

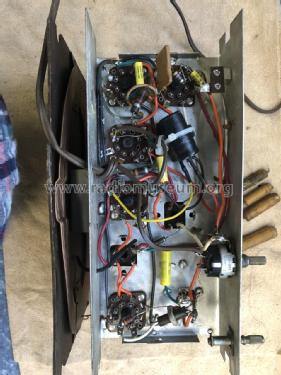

  • Model: 5R10N Ch= 5R1 - Admiral brand Continental
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 10.5 x 6.5 x 6 inch / 267 x 165 x 152 mm
  • Notes
  • Built in loop antenna.
  • Net weight (2.2 lb = 1 kg)
  • 4.5 lb (4 lb 8 oz) / 2.043 kg
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 22, covering 1951
