5X12 (5 X 12) Ch= 5X1 (5 X 1)
ID = 31285
 |
 |
 |
 |
 |
 |
 |
Admiral brand : 5X12 Ch= 5X1 [Radio] ID = 124170 640x456
| Country: United States of America (USA) | Manufacturer/Brand: Admiral (brand) Continental Radio & Television Co. |
| Year: 1949 | Type: Radio or Tuner |
| Valves / Tubes | 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT |
|---|
| Principle | Super-Heterodyne (Super in general); IF-Freq. 455 kHz; 2 AF-stage(s) |
|---|---|
| Tuned circuits | 6 AM circuit(s); |
| Wave bands | Broadcast only (MW). |
| Power type and voltage | AC/DC-set / 117 Volt |
| Loudspeaker/pwr.out | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch |
| from Radiomuseum.org | Model: 5X12 Ch= 5X1 |

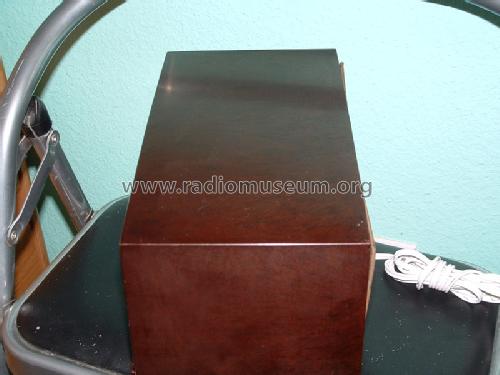

| Material | Bakelite case |
| Shape | Tablemodel, Mantle/Midget/Compact but not a Portable (Mains only). |
| Notes | Color=Mahogany |
All listed radios etc. from Admiral (brand) Continental Radio & Television Co.
Here you find 1805 models, 543 with images and 1389 with schematics.
Collection of Didier Tholomier (F)
