Model: Y3564 Ch= 5M6

Antique radios, Old Time Radios

Y3564 Ch= 5M6

Country: United States of America (USA) Manufacturer/Brand: Admiral (brand) Continental Radio & Television Co.
Year: 1963 / 1964 Type: Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs. Mod.-ID = 92248 previous | Result List | next | New search for Radios etc. Schematics etc.: 5 (for members) Principle Super-Heterodyne (Super in general); IF-Freq. 455 kHz; 2 AF-stage(s)Superhet - normally without a preamplification stage (as far as known). Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne. Normalement sans préamplification de HF.
Superhet ohne Vorstufe.
Nicht immer war bei der Erfassung klar, ob der Empfänger eine Vorstufe aufweist oder nicht. Im Zweifelsfall kam das Gerät in diese Kategorie.
Tuned circuits 6 AM circuit(s);
Wave bands Broadcast only (MW).Mittelwellenempfänger
Power type and voltage Alternating Current supply (AC) / 117 VoltAC set plus voltage range.
/ = 2 different voltages
- = voltage from-to
* = «Special»
Apparareil à courant alternatif. Tensions mentionnées.
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl/«Spezial»
Normalerweise sind diese Geräte mit einem Trafo mit Primär- und Sekundärwicklungen versehen. Dadurch führt das Chassis kein gefährliches Potential.
Loudspeaker/pwr.out Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
www.radiomuseum.org Model: Y3564 Ch= 5M6 Material Modern plastics (no Bakelite or Catalin)Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Valves / Tubes 5: 12BE6 (more for members)
Notes Beitman Vol 25 of 1965 and SAMS 9-64, set 712, folder 5 list the following Admiral clock radios:
For chassis 5D6E: Y3543 (white), Y3554 (pink), Y3557 (beige) and Y3559 (blue).
For chassis 5D6F: Y3381A (Baltic black), Y3383A (ermine white) with two loudspeakers.
For chassis 5M6 : Y3564 (pink), Y3568 (green), Y3569 (turquoise), Y3573 white), Y3577 (beige) and Y3579 (blue)
These are AC 60 cycles clock radios with a loop antenna. The different chassis differ only in minor things like loop antenna, tuning capacitor version, clock versions etc. Except (perhaps) Y3543 and Y3564 the models have top push buttons. Has this model really not pushbuttons as SAMS indicates (on part2)?

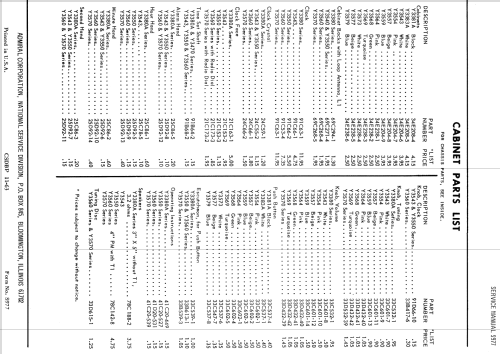

Additional information:
Beitman lists on this same schematic - and SAMS Photofact in Date 7-64, set 704, folder 5 separately - the Admiral models Y3513, Y3517 and Y3519 for chassis 5K6 plus Y3321A and Y3323A with chassis 5D6D plus models Y3523, Y3528 and Y3529 with chassis 5L6. All are AC-DC 5 tube AM receivers with 6 tuned circuits with a loop antenna. Within a chasis they differ only in color.

Chassis 5D6E, 5K6 and 5M6 use one loudspeaker (T3) with 4" diameter. Chassis 5D6D and 5D6F use two loudspeakers in series (T4) and chassis 5L6 two in parallel (T5). It shows also four different dial stringings like for 5M6, 5D6D, 5D6F and 5L6 (missing 5K6 and 5D6E). There is a different "Precision wired system, 114E356-1 in 5K6 and 5L6 and 14E356-2 in 5D6D, 5D6E and 5D6F.

For more information on the Y-models including colors see this link.

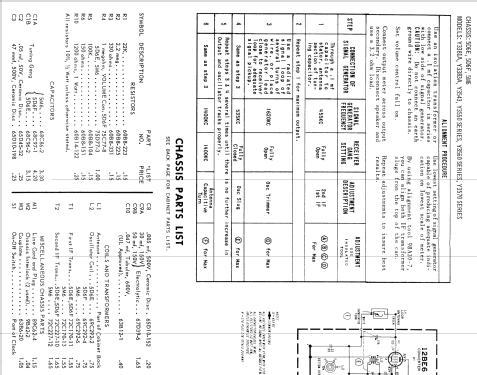

Circuit diagram reference Beitman Radio Diagrams Vol. 25, 1965 Most-often-needed Radio Diagrams and Servicing Information, Compiled by M.N. Beitman, Supreme Publications. Al least some of the Books have been reprinted by Vintage Radio Co., P.O.Box 2045, Palos Verdes, CA 90274, USA.

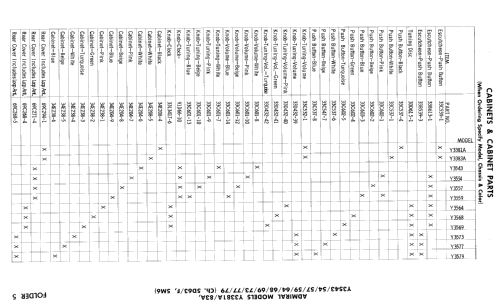

Literature/Schematics Photofact Folders, SamsPhotofact Folders, Howard W. Sams. Normally referenced in schematics but when there is more ... (select the last field and enter the number in the free field). (Date 9-64, set 712, folder 5)

This model was suggested by Egon Penker.

SAMS Photofact reference picture for Admiral models Y3564, Y3568, Y3569, Y3573, Y3577 and Y3579 with chassis 5M6, which differ only in color.
