47GW

ID = 136734

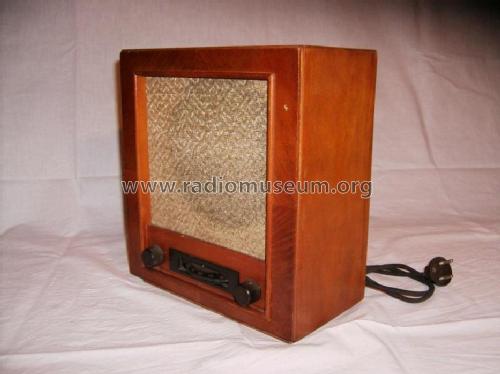

AEG Radios Allg.: 47GW [Radio] ID = 496412 448x336

For model 47GW, AEG (Radios) Allg.Elektricitäts-Ges.

Country:

Manufacturer/Brand:

Year: 1947 ?

Type: Radio - or past WW2 tuner

Valves / Tubes

2: VCL11 VY2

Principle	TRF with reaction (regenerative)
Tuned circuits	1 AM circuit(s)
Wave bands	Broadcast only (MW).
Details
Power type and voltage	AC/DC-set / 220 Volt
Loudspeaker	Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
Power out
from Radiomuseum.org	Model: 47GW - AEG Radios Allg.Elektricitäts-
Material	Wooden case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	253 x 135 x 207 mm / 10 x 5.3 x 8.1 inch
Net weight (2.2 lb = 1 kg)	2.3 kg / 5 lb 1.1 oz (5.066 lb)
Source of data	- - Data from my own collection /

Model page created by Jürgen Tiedmann. See "Data change" for further contributors.
