D11/B

D11/B; AEG Radios Allg. (ID = 496531) Microphone/PU D11/B; AEG Radios Allg. (ID = 496532) Microphone/PU
D11/B; AEG Radios Allg. (ID = 496533) Microphone/PU D11/B; AEG Radios Allg. (ID = 496534) Microphone/PU
D11/B; AEG Radios Allg. (ID = 1112991) Microphone/PU D11/B; AEG Radios Allg. (ID = 1112992) Microphone/PU
D11/B; AEG Radios Allg. (ID = 1112993) Microphone/PU D11/B; AEG Radios Allg. (ID = 1112994) Microphone/PU
D11/B; AEG Radios Allg. (ID = 1112995) Microphone/PU D11/B; AEG Radios Allg. (ID = 1964323) Microphone/PU
Use red slider bar for more.
D11/B; AEG Radios Allg. (ID = 496531) Microphone/PU
AEG Radios Allg.: D11/B [Microphone/PU] ID = 496531 537x700
Select picture or schematic to display from thumbnails on the right and click for download.

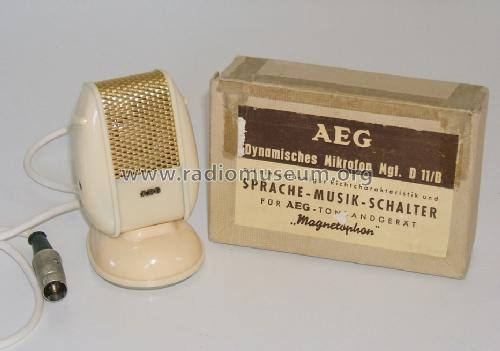

For model D11/B, AEG (Radios) Allg.Elektricitäts-Ges.

Country:  Germany
Manufacturer / Brand:  AEG (Radios) Allg.Elektricitäts-Ges.
Year: 1959/1960 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker
Power out
from Radiomuseum.org Model: D11/B - AEG Radios Allg.Elektricitäts-
Material Moulded (Bakelite or Plastics)
Dimensions (WHD) 60 x 90 x 30 mm / 2.4 x 3.5 x 1.2 inch
Notes Dynamisches Mikrofon mit nierenförmiger Richtcharakteristik und Sprache-Musik-Schalter. Maße / Gewicht: ohne Sockel. Baugleich mit D11/B von Telefunken.
Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Collectors' prices
Source of data - - Data from my own collection

Model page created by Holger Specht. See "Data change" for further contributors.
