• Country
• Sweden

• Manufacturer / Brand
• AGA and Aga-Baltic Radio AB; Sweden

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182652

• • alternative name: AGA-Baltic Radio AB; Stockholm

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC81 ECH81 EF41 EAF42 EM34 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 463/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2501 FM - AGA and Aga-Baltic Radio AB;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 448 x 360 x 367 mm / 17.6 x 14.2 x 14.4 inch

• Notes
• Exportmodell wohl für den deutschen Markt.
  Eingebauter Plattenwechsler Elac PW9 (Miracord 9).
  The radio has a built-in record changer ELAC model PW9.
  This may be an exportmodel since the Swedish model does - according to original salesbrochures for 1954-55 and 1955-56 - not contain a changer but only a single record player. (The ELAC Miracord G 9 S).

• Mentioned in

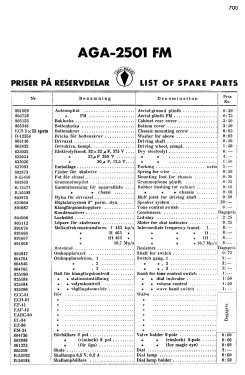

• - - Manufacturers Literature (AGA-Radio service documentation 1954-55)

• Author
• Model page created by Júlio Branco. See "Data change" for further contributors.
