4705 Ch= 467


Country: United States of America (USA) Manufacturer/Brand: Air-King Products Co.
Year: 1946 Type: Radio or TunerBroadcast receiver (Radio).
Im Gegensatz zu Radioempfängern für kommerzielle und/oder militärische Zwecke und den frühen Empfängern für Morsezwecke nennen wir hier Radio bzw. Rundfunkempfänger. Aber: Gemäss internationaler Sprachregelung führt der Radiokatalog Band 1 alle Empfänger mit aktiven Bauteilen als RADIO. Wir unterscheiden hier ebenfalls nicht, ob mit Röhren bestückt, hybrid, mit Transistoren oder/und ICs. Mod.-ID = 31636 previous | Result List | next | New search for Radios etc. Schematics etc.: 2 (for members) Principle Superhet with RF-stage; IF-Freq. 455 kHz; 2 AF-stage(s)Superhet with a preamplification stage.
Please use «To add informations to model» if you know more! Thanks.
Récepteur TSF superhétérodyne avec préamplification de HF.
Superhet mit HF-Vorstufe.
Tuned circuits 6 AM circuit(s);
Wave bands Broadcast only (MW).Mittelwellenempfänger
Power type and voltage AC/DC-set / 105 - 125 VoltAC-DC set (all-mains) - sometimes plus voltage range:
/ = 2 different voltages
- = voltage from-to
* = «Special»
Attention: Chassis mostly connected to deadly high tension!
Apparareil à tous-courants. Tensions mentionnées.
Wechsel- und Gleichstrom:
/ = 2 Spannungswahlen
- = von-bis
* = Fabrikwahl
Vorgeschalteten Trenntrafo verwenden! Chassis oft unter Starkstrom stehend!
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)Permanent magnet type moving coil speaker (principle by Rice-Kellog, without field excitation coil).
Haut-parleur avec système dynamique à aimant permanent (sans bobine d`excitation).
Permanentdynamischer Lautsprecher, also (modernes) Tauchspulenprinzip mit Selbsterregung bzw. Permanentmagnet statt Magnetspule. Siehe «Radios von gestern» Seiten 329ff.
www.radiomuseum.org Model: 4705 Ch= 467   Material Modern plastics (no Bakelite or Catalin)Plastic case - not bakelite.
Caisse en plastique - pas en bekelite!
Moderner Kunststoff im Gegensatz zu Materialien wie Bakelit, Philit etc.
Shape Tablemodel, Mantle/Midget/Compact but not a Portable (Mains only).
Valves / Tubes 6: 12SK7GT     (more for members)
Notes Color=Walnut.
Collectors prices 1 Collector price (for members)
Source of data Ernst Erb
Catalogue reference Collector's Guide to AR4.Ed.,Bunis, tubeCollectors Guide to Antique Radios, Fourth Edition, 1997, Marty & Sue Bunis, Collector Books, Paducah, USA. See also the other editions.

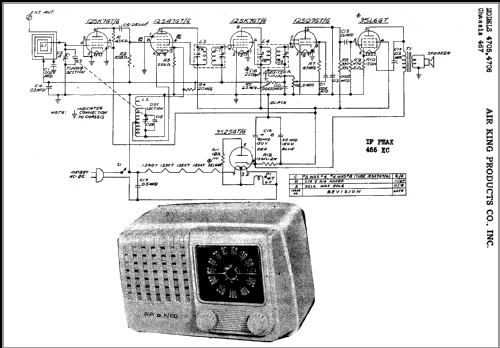

Circuit diagram reference Rider's Perpetual, Volume 17Ave, RD 2, Canandaigua, NY 14424-9564, USA.
For your information:
Other big collections of schematics for the USA are the books «Most-Often-Needed Radio Diagrams», compiled by M.N.BEITMAN (beginning: 1926-1938 = Vol. 1).
and folders from:
Howard W. Sams Company, 2647 Waterfront Parkway East Drive, Indianapolis, IN 46214-2041, Tel.: 1-800-GET-SAMS or 1-800-428-5331 or 7267.
Mentioned in The Radio CollectorGrinder, 1995The Radio Collectors Directory and Price Guide by Robert E. Grinder, Sonoran Publishing, LLC, USA: Is one of the best books for your information as a radio collector.
Literature/Schematics Photofact Folders, SamsPhotofact Folders, Howard W. Sams. Normally referenced in schematics but when there is more ... (select the last field and enter the number in the free field). (Set 9, Folder 1)



No further information on

4705 Ch= 467   (Air-King Products Co.)
