• Country
• United States of America (USA)

• Manufacturer / Brand
• Air King Products Co.; Brooklyn (NY)

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126940

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12BA6 12SQ7 50L6 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: A-511 "Prince" Ch= 477 [tube 12BA6] - Air King Products Co.;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10 x 6 x 6 inch / 254 x 152 x 152 mm

• Notes

• Color: brown. Also called simply 511 (w/o A). Similar to A-512 (ivory). Similar to CBS Columbia model 511. Same case as Air King 4705 (1946). Riders shows a dial lamp, Beitman (CBS) shows no dial lamp. Both schematics list 12SK7 not 12BA6.
  But a back label lists a 12BA6 in contradiction to the really used 12SK7.

  Cabinet : painted bakelite.

• Net weight (2.2 lb = 1 kg)
• 2.270 kg / 5 lb 0 oz (5 lb)

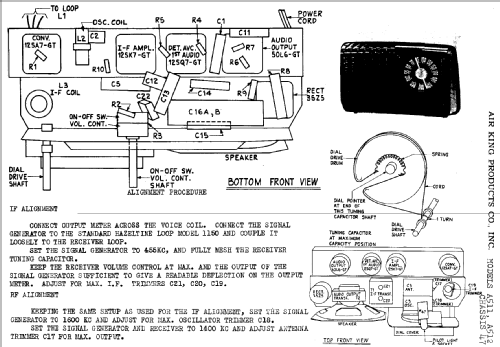

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Machine Age to Jet Age II

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 13, 1953 ((see CBS-Columbia))

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
