• Country
• United States of America (USA)

• Manufacturer / Brand
• Air King Products Co.; Brooklyn (NY)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 71975

• Number of Tubes
• 5

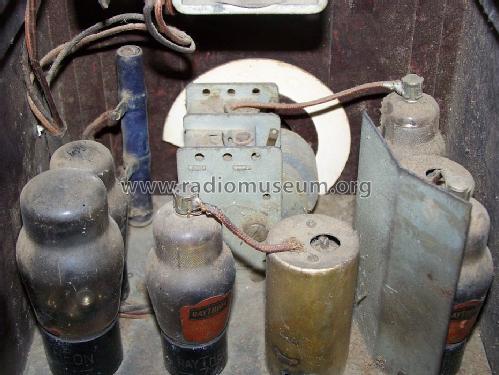

• Valves / Tubes

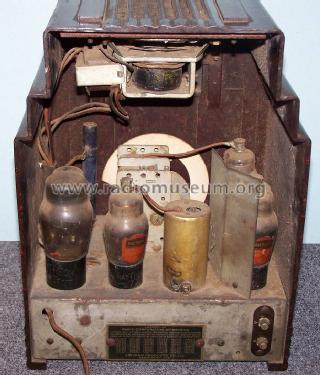

• 43 75 78 6A7 25Z5

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

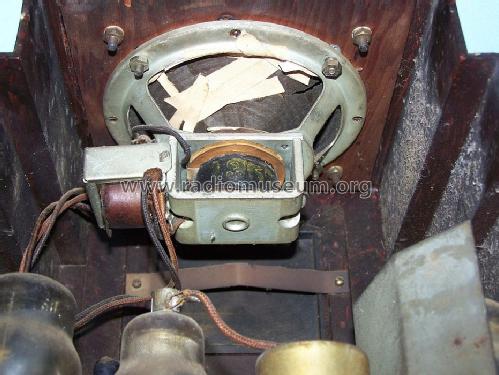

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

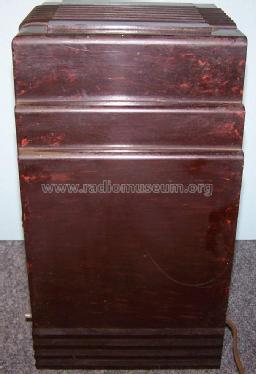

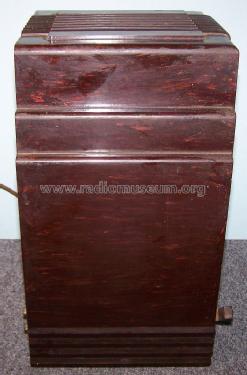

• Material
• Bakelite case

• from Radiomuseum.org

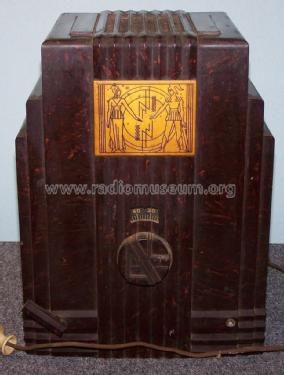

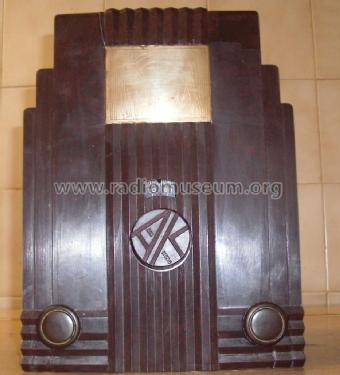

• Model: Air-King Skyscraper 52 [AC/DC] - Air King Products Co.;

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 8.7 x 11.7 x 6.7 inch / 221 x 297 x 170 mm

• Notes

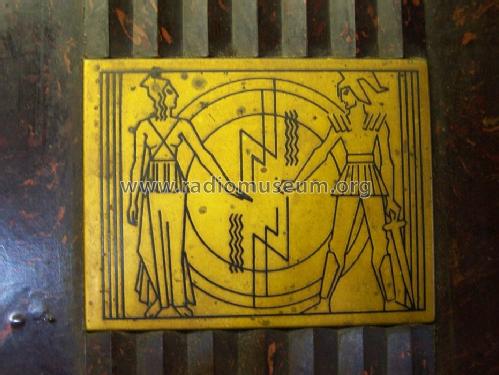

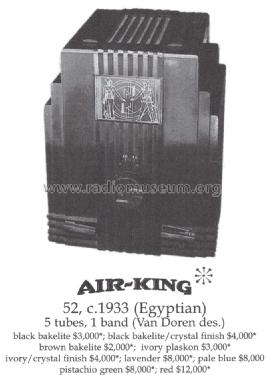

• Material = Plaskon; Family of 3, each same chassis for AC and chassis for AC/DC: 52 (with Egyptian tableau), 53 (with World map) and 54 (with Clock); choice of colors. See details on 52 AC. Normally we don't enter the maker but only the model like Skyscraper, not Air-King Skyscraper. Please search always without brand or company. Here we have Air-King only to inform you about this.

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
