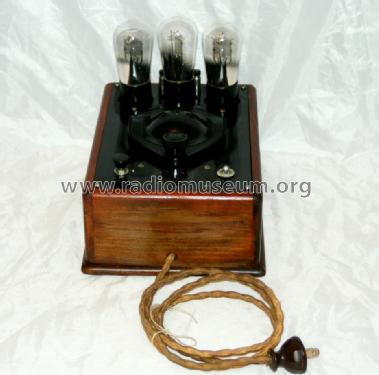

Super Short Wave Converter

Air King Products Co.; Brooklyn (NY)

Data
Forum
Pictures
Collections

  • Year
  • 1929 ?
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 229166

 Technical Specifications

  • Number of Tubes
  • 3
  • Main principle
  • RF Converter/Adapter (not voltage converter)
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: Super Short Wave Converter - Air King Products Co.;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 185 x 95 x 250 mm / 7.3 x 3.7 x 9.8 inch
  • Notes

  • Your Broadcast Receiver acts as an IF-amplifier: First adjust the Radio set to a wavelength between 450 and 500 meters (where no local station is received!), with all dials tuned in and all controls set, just as though a distant station was being tuned in. Now the Receiver is ready to use with adapter.

    Connect antenna and ground to the ANT and GND terminals on the Short Wave Adapter. Tune using the selector control and use the auxiliary control to adjust regeneration.



  • Net weight (2.2 lb = 1 kg)
  • 1.6 kg / 3 lb 8.4 oz (3.524 lb)
  • Author
  • Model page created by Peter Kahlich. See "Data change" for further contributors.
