Stereo Portable-Radio-Cassetten-Recorder TPR-930EE

Aiwa Co. Ltd.; Tokyo

  • Year
  • 1975 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 285184

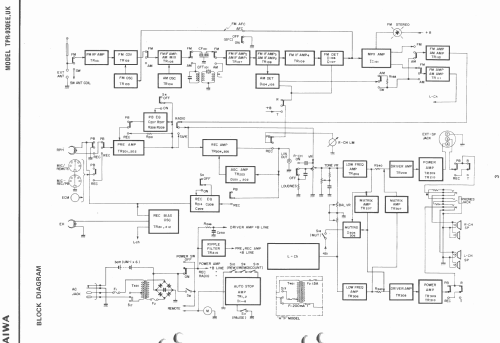

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 40
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 120 / 6 x 1,5 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Portable-Radio-Cassetten-Recorder TPR-930EE - Aiwa Co. Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 392 x 213 x 114 mm / 15.4 x 8.4 x 4.5 inch
  • Notes
  • Aiwa Portable 4-Band Stereo Radio-Cassetten-Recorder Model TPR-930EE.
    Matrix Sound System
    Loudness
    AFC
    Automatic Stop
    Memory Replay System
    CrO2 Type - 50-13000Hz
    3 Digit Analog Tape Counter
    Built-In Condenser Mic
    External Speaker 4 Ohms
    Telescopic antenna
    Carrying Handle
    Semi Conductors:
    40x Transistors, 27x Diodes, 2x Thermistors, 1x IC


  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)
  • Mentioned in
  • -- Original prospect or advert (Aiwa Print Ad 1975)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
