• Country
• Austria

• Manufacturer / Brand
• AKG Acoustics GmbH; Wien

• Year
• 1962

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 87169

• • alternative name: AKG Akustische- ...München - siehe Austria
  • Brand: Akustische- und Kino-Geräte GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 7586

• Number of Transistors
• 1

• Semiconductors

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

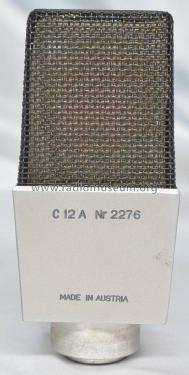

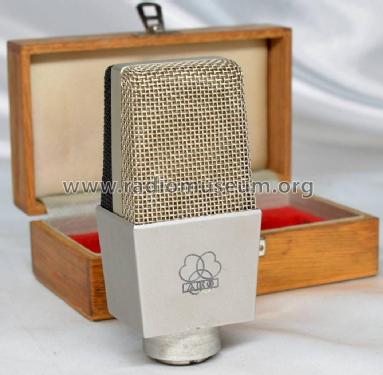

• Model: C12A - AKG Acoustics GmbH; Wien

• Dimensions (WHD)
• 40 x 100 x 32 mm / 1.6 x 3.9 x 1.3 inch

• Notes

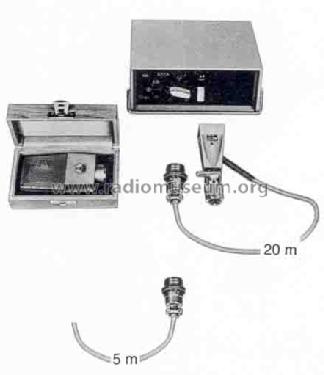

• Kondensator-1 Zoll-Doppelmembrane-Mikrofon, Richtcharakteristik fernsteuerbar; Impedanz 200 Ohm, Speisung über 6-poliges Kabel vom Netzgerät N12A.

• Net weight (2.2 lb = 1 kg)
• 0.2 kg / 0 lb 7 oz (0.441 lb)

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Hans Haas. See "Data change" for further contributors.
