D590

D590; AKG Acoustics GmbH; (ID = 644870) Microphone/PU D590; AKG Acoustics GmbH; (ID = 644868) Microphone/PU
D590; AKG Acoustics GmbH; (ID = 644869) Microphone/PU D590; AKG Acoustics GmbH; (ID = 644871) Microphone/PU
Use red slider bar for more.

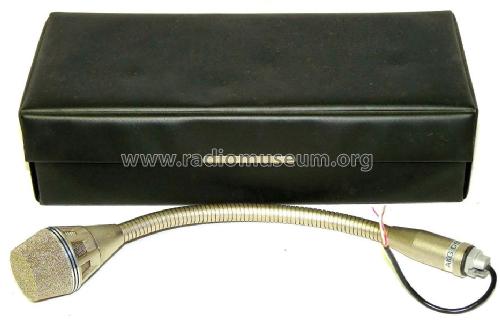

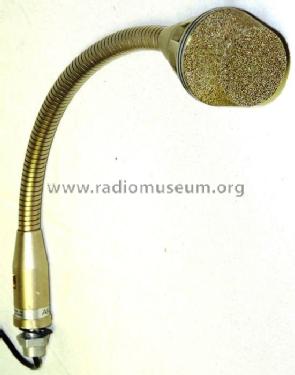

D590; AKG Acoustics GmbH; (ID = 644870) Microphone/PU
AKG Acoustics GmbH;: D590 [Microphone/PU] ID = 644870 551x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model D590, AKG Acoustics GmbH; Wien

Country:  Austria
Manufacturer / Brand:  AKG Acoustics GmbH; Wien
alternative name

AKG Akustische- ...München - siehe Austria
Brand
Akustische- und Kino-Geräte GmbH
Year: 1977 ? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: D590 - AKG Acoustics GmbH; Wien
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 40 x 40 x 295 mm / 1.6 x 1.6 x 11.6 inch
Notes Dynamisches Schwanenhals-Mikrofon für den Einbau in Mischpulte, Sprechstellen etc. Impedanz 200Ohm.
Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Peter Roggenhofer. See "Data change" for further contributors.
