Autotransistor 715/6100

• Country
• Germany

• Manufacturer / Brand
• Akkord-Radio + Akkord Elektronik (Radios)

• Year
• 1965–1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 413

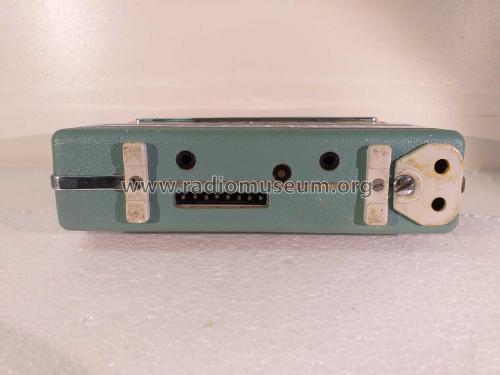

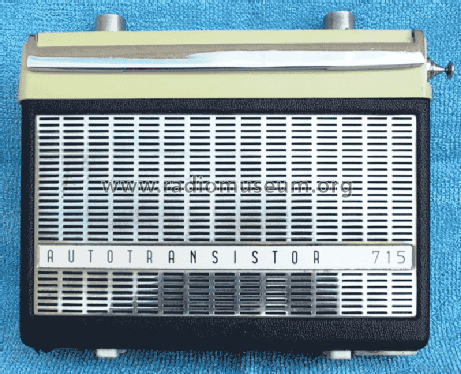

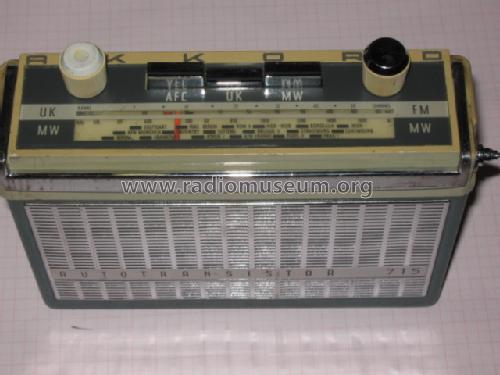

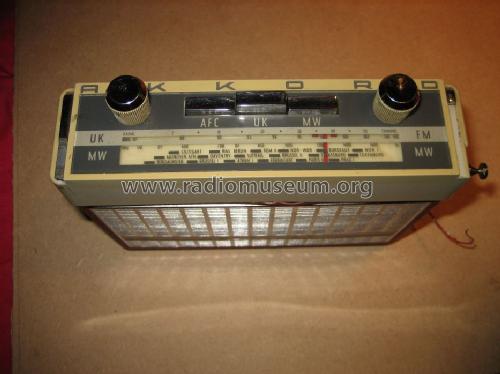

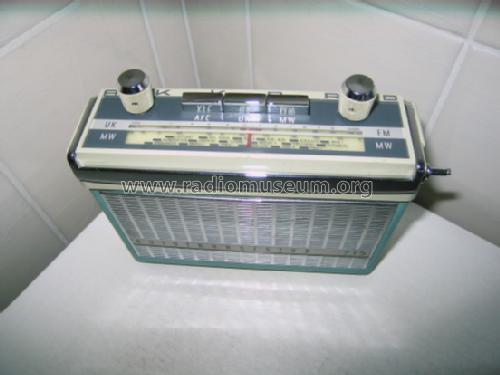

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Autotransistor 715/6100 - Akkord-Radio + Akkord

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 168 x 146 x 44 mm / 6.6 x 5.7 x 1.7 inch

• Notes
• Transistoren: 2× AF106, 3× AF138, 2× AF137, 2× AC122, 2× AC117.
  Betrieb im Auto über Autohalterung aus 6-V- oder 12-V-Autobatterie, dann 2,5-W-Ausgangsleistung und beleuchtete Skala; Netzbetrieb mit Netzteil möglich.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Price in first year of sale
• 159.00 DM

• Source of data
• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Handbuch VDRG 1966/1967
