• Country
• Germany

• Manufacturer / Brand
• Akkord-Radio + Akkord Elektronik (Radios)

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 418

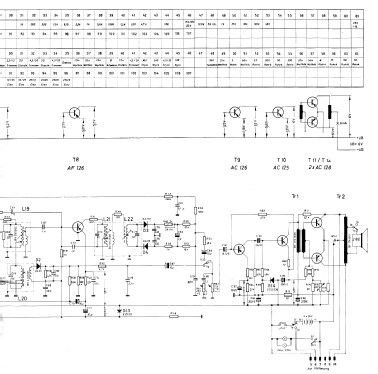

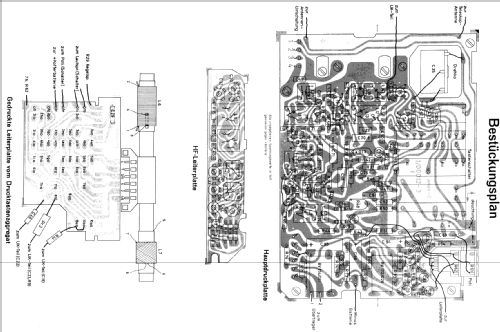

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• AF106 AF125 AF126 AF126 AF126 AF126 AF126 AF126 AC126 AC125 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 4x1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• from Radiomuseum.org

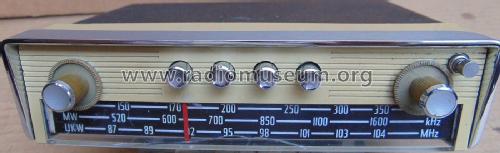

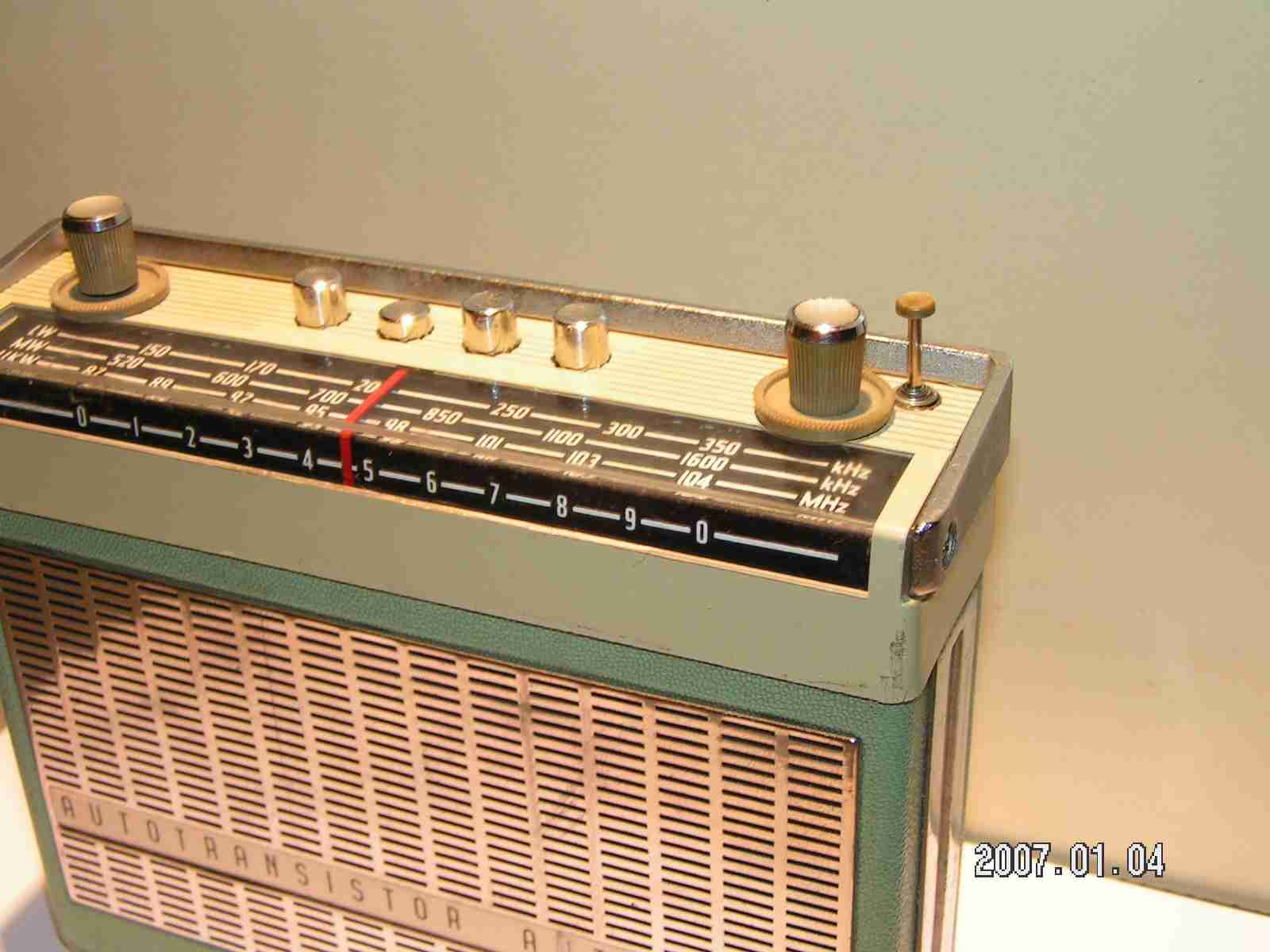

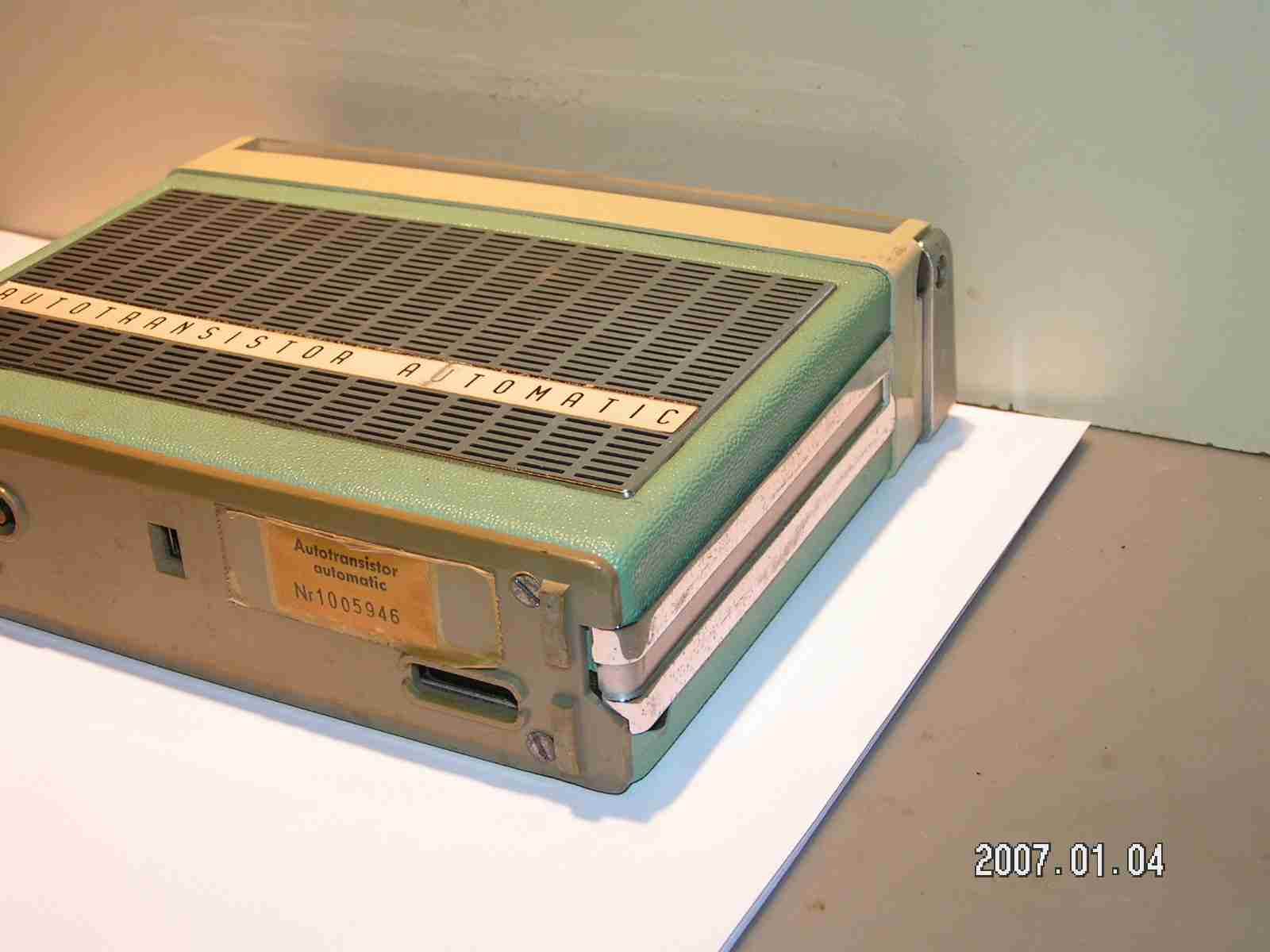

• Model: Autotransistor automatic AT620/5000 - Akkord-Radio + Akkord

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 172 x 150 x 46 mm / 6.8 x 5.9 x 1.8 inch

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Source of data
• Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

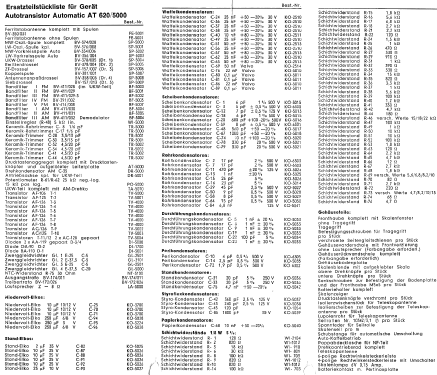

• Literature/Schematics (1)
• -- Original-techn. papers.
