• Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 353

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Line / Batteries (any type) / 110; 125; 220 / 2 × 1,5 & 100 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.2 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

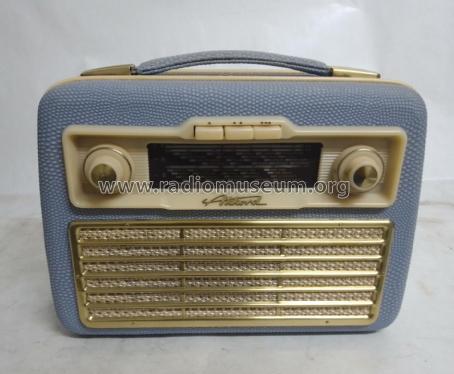

  • Model: Pinguin M57 - Akkord-Radio + Akkord
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 265 x 200 x 100 mm / 10.4 x 7.9 x 3.9 inch
  • Notes
  • MW-Bereiche 515-1100 und 1050-1600 kHz; Standard: Kunstlederbezug; Luxus: Echtleder (218,- DM).
  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Price in first year of sale
  • 198.00 DM
  • Circuit diagram reference
  • Lange Schaltungen der Funkindustrie, Buch 1
