Pinguin U58
Akkord-Radio + Akkord Elektronik (Radios)
- Country
- Germany
- Manufacturer / Brand
- Akkord-Radio + Akkord Elektronik (Radios)
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 363
Bild aus ebay
Sammlung Ortjohann
Sammlung Ortjohann
Sammlung Ortjohann
Bild aus ebay
Ansicht: Chassis augebaut
Chassis von oben gesehen

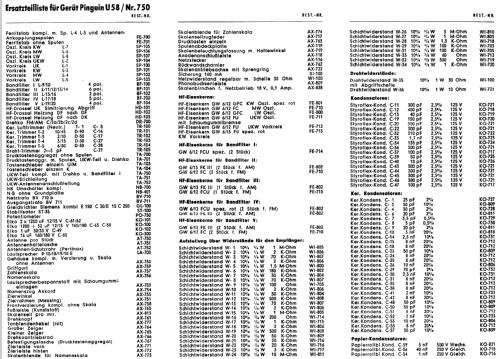

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 110; 125; 155; 220; 240 / 1,5 & 100 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Pinguin U58 - Akkord-Radio + Akkord
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 315 x 217 x 136 mm / 12.4 x 8.5 x 5.4 inch
- Notes
- Ovallautsprecher 10,5 x 17 cm. Auch als USA-Export.
- Net weight (2.2 lb = 1 kg)
- 3.5 kg / 7 lb 11.3 oz (7.709 lb)
- Price in first year of sale
- 278.00 DM
- Source of data
- HdB d.Rdf-& Ferns-GrH 1958/59 / Radiokatalog Band 1, Ernst Erb
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 7-58, Set 409, Servicer)
