• Year
  • 1957 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 272225

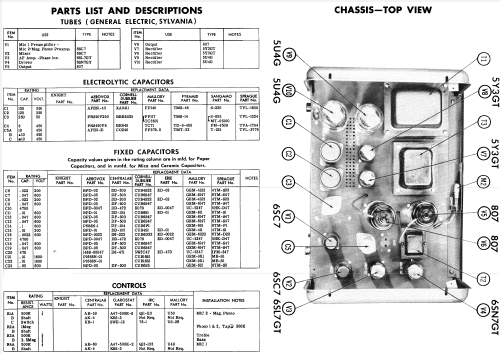

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 110 - 130 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 80 W (max.)
  • from Radiomuseum.org
  • Model: Knight 93SZ695 - Allied Radio Corp. Knight,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • The Knight 93SZ695 is a AC Operated 5 Channel 80 Watt Audio Amplifier.
