- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273813
Picture courtesy of guest Kirk Laffman
Picture courtesy of guest Kirk Laffman
Picture courtesy of guest Kirk Laffman
Picture courtesy of guest Kirk Laffman
Picture courtesy of guest Kirk Laffman
Picture courtesy of guest Kirk Laffman
Picture courtesy of guest Kirk Laffman
- Number of Tubes
- 4
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight H-9809 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 11 x 7 x 5 inch / 279 x 178 x 127 mm
- Notes
-
The Knight H-9809 is an AC/DC operated 4 tube BC band receiver.
Similar model is the Allied Universal.

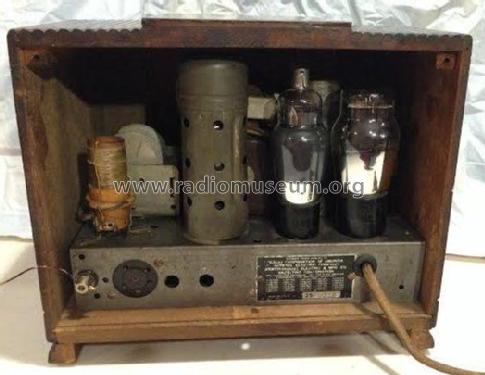

The chassis used for the Allied Universal and the Allied Knight H-9809 are the same, except the H-9809 has an additional socket on the back chassis panel (probably for external battery power).
- Price in first year of sale
- 19.50 USD
- External source of data
- Data courtesy of guest Kirk Laffman
- Literature/Schematics (1)
- Allied Radio Catalog (Knight) (1936, page 7)
- Literature/Schematics (2)
- Tabletop Radios Volume 1 (page 102)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
