Knight-kit Grid Dip Meter 83 Y 721 G-30

• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 189118

• Picture
• Schematics

Previous Next

Previous Next

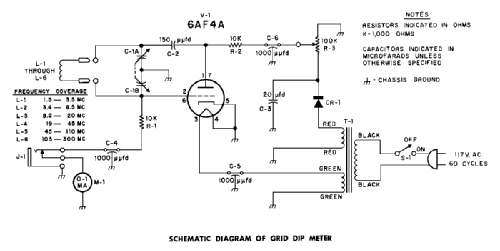

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 6AF4A

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Knight-kit Grid Dip Meter 83 Y 721 G-30 - Allied Radio Corp. Knight,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 80 x 180 x 70 mm / 3.1 x 7.1 x 2.8 inch

• Notes
• Are enclosed at G-30 no. six plug-in coils for range frequency of 1.5 to 3.5 mc, 3.4 to 8.5 mc, 8.2 to 20 mc, 19 to 45 mc, 45 to 115 mc and 110 to 300 mc.

• Net weight (2.2 lb = 1 kg)
• 0.650 kg / 1 lb 6.9 oz (1.432 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Emilio Focosi. See "Data change" for further contributors.
