• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 30489

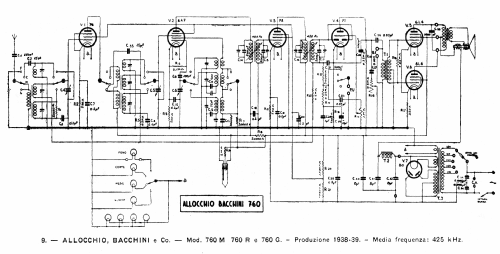

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 425 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer); Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 12 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 760G - Allocchio Bacchini Radialba;
  • Shape
  • Console with any shape - in general
  • Notes
  • Indicatore di sintonia al neon. Stadio di uscita in controfase da 10W. Simile al modello 760R, con in più giradischi e album portadischi.
    Neon meter.

  • Price in first year of sale
  • 3,800.00 ITL
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (2)
  • Il Radio Libro D. E. Ravalico VI edizione 1942
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
