Alimentatore stabilizzato per UK957 UK697

Amtron, (High-Kit, Amtroncraft); Milano

Data
Forum
Pictures
Collections

  • Year
  • 1974–1978
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 209041

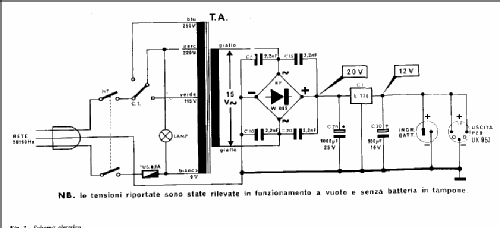

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Wave bands
  • - without
  • Details
  • Power Supply (not only Batt.El.)
  • Power type and voltage
  • Alternating Current supply (AC) / 115; 220; 250 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Alimentatore stabilizzato per UK957 UK697 - Amtron, High-Kit, Amtroncraft;
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 105 x 50 x 77 mm / 4.1 x 2 x 3 inch
  • Notes
  • Frequenza di rete: 50-60 Hz
    Tensione di uscita stabilizzata: 12 Vc.c.
    Corrente massima erogata: 200 mA
    Stabilità della tensione di uscita: ± 0,01%

    Apparecchio in scatola di montaggio (kit) o preassemblato.
  • Net weight (2.2 lb = 1 kg)
  • 0.470 kg / 1 lb 0.6 oz (1.035 lb)
  • Price in first year of sale
  • 12,500.00 ITL
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)

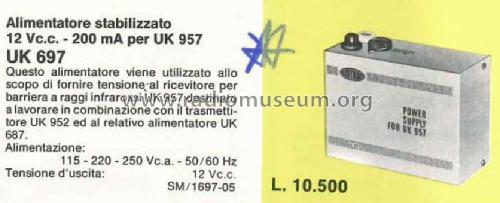

  • Amtron Catalogo Kit N.8
  • Literature/Schematics (2)
  • Amtron Catalogo Kit N.12
  • Author
  • Model page created by Pasquale Baiocato. See "Data change" for further contributors.
