Micro Ricevitore AM (Sinclair Micromatic) High-Kit UK 100

Micro Ricevitore AM High-Kit UK 100; Amtron, High-Kit, (ID = 1942114) Kit
Micro Ricevitore AM High-Kit UK 100; Amtron, High-Kit, (ID = 1942108) Kit Micro Ricevitore AM High-Kit UK 100; Amtron, High-Kit, (ID = 1942110) Kit
Micro Ricevitore AM High-Kit UK 100; Amtron, High-Kit, (ID = 1942111) Kit Micro Ricevitore AM High-Kit UK 100; Amtron, High-Kit, (ID = 1942113) Kit
Use red slider bar for more.
Micro Ricevitore AM High-Kit UK 100; Amtron, High-Kit, (ID = 1942108) Kit
Amtron, High-Kit,: Micro Ricevitore AM High-Kit UK 100 [Kit] ID = 1942108 500x558
Select picture or schematic to display from thumbnails on the right and click for download.

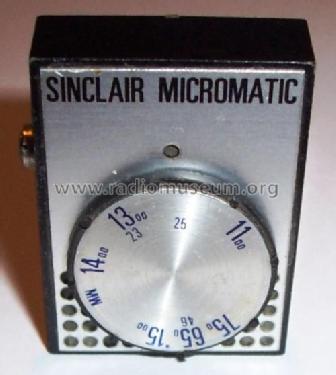

For model Micro Ricevitore AM (Sinclair Micromatic) High-Kit UK 100, Amtron, (High-Kit, Amtroncraft); Milano

Country:  Italy
Manufacturer / Brand:  Amtron, (High-Kit, Amtroncraft); Milano
Year: 1969 ?? Category: Kit (Parts plus instruction) or building instructions only
Semiconductors (the count is only for transistors) 3: MAT101 MAT101 MAT100
Main principle TRF without regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,4 Volt
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Micro Ricevitore AM High-Kit UK 100 - Amtron, High-Kit, Amtroncraft;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 33 x 46 x 13 mm / 1.3 x 1.8 x 0.5 inch
Notes

Questa scatola di montaggio (Sinclair Micromatic)  commercializzata dalla High-Kit permette la realizzazione di un eccezionale ricevitore radio AM, senz'altro uno dei più piccoli del mondo. Il cirquito elettrico, interamente formato da componenti miniaturizzati, consente risultati straordinari che rendono possibile un buon ascolto con auricolare, senza neppure usare alcuna antenna esterna. Alimentazione con due pile bottone al mercurio da 1,4 V cad.. Transistor impiegati: MAT 101 (marrone); MAT 101 (rosso); MAT 100 (arancio). Diodi impiegati: D1, D2

Price in first year of sale 7,700.00 Lit

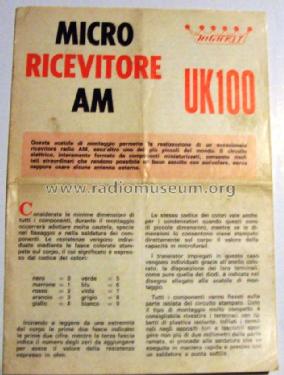

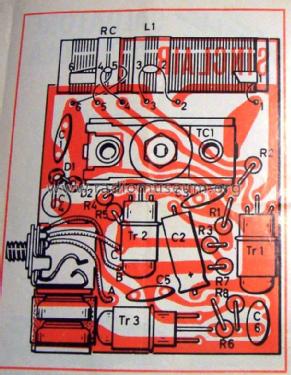

Literature/Schematics (1) Descrizione e specifiche di montaggio originali High-Kit

Model page created by Giovanni Pugnaghi. See "Data change" for further contributors.
