• Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33123

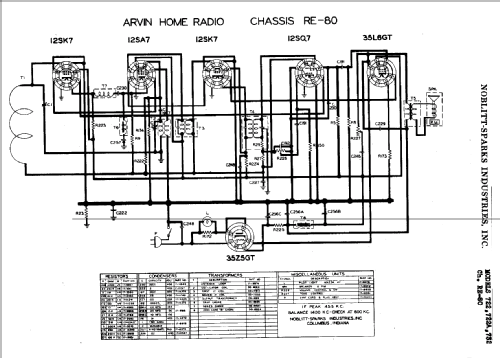

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 722A Ch= RE80 - Arvin, brand of Noblitt-Sparks
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 12.5 x 7.25 x 7 inch / 318 x 184 x 178 mm
  • Notes
  • Built-in loop antenna.

    Model Cabinet
    722 Brown bakelite
    722A Ivory finish



  • Price in first year of sale
  • 19.95 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
