- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1956 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284239

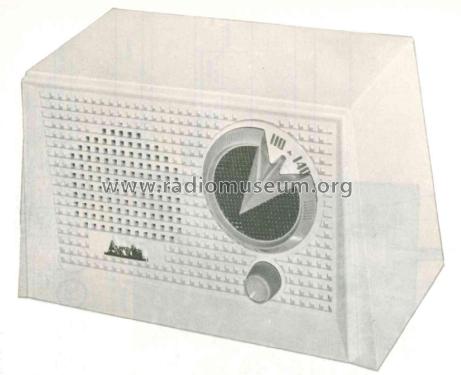

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 951T1 - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, with any shape - general.
- Notes
-
AC - DC Operated AM Superheterodyne Receiver
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 340 Folder 2 dated 12-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
