• Year
  • 1925 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 192038

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Valves / Tubes
  • Main principle
  • TRF with regeneration
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 6 & 80 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org

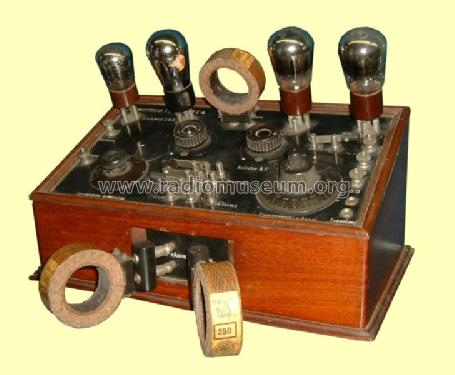

  • Model: ACTI 4 - Ateliers et Comptoir Techn. et
  • Shape
  • Tablemodel, slant panel.
  • Dimensions (WHD)
  • 365 x 165 x 210 mm / 14.4 x 6.5 x 8.3 inch
