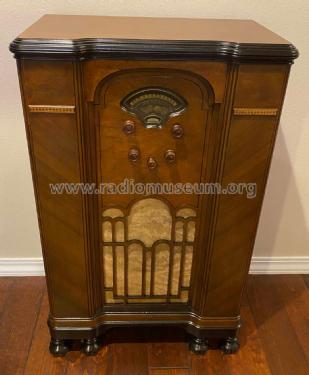

318 K; Atwater Kent Mfg. Co (ID = 309337) Radio
Atwater Kent Mfg. Co: 318 K [Radio] ID = 309337 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 318 K, Atwater Kent Mfg. Co.; Philadelphia, USA:
Ebay Nr. 220097619217 Bild bearbeitet.

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1934/1935 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 58 2A7 58 58 55 2A5 2A5 80
Principle Superhet with RF-stage; ZF/IF 472 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out 6.6 W (unknown quality)
from Radiomuseum.org Model: 318 K - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 90.00 $
Source of data Pre-War Consoles; Stein, 2000
Circuit diagram reference Rider's Perpetual, Volume 5 = ca. 1934 and before
Mentioned in Collector's Guide to AR6.Ed. Slusser tube

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
