• Country
• United States of America (USA)

• Manufacturer / Brand
• Atwater Kent Mfg. Co.; Philadelphia, USA

• Year
• 1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33350

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 24 27 24 24 27 27 45 45 80

• Main principle
• Superheterodyne (common); ZF/IF 130 kHz; 2 AF stage(s); Screengrid 1926-1935

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 72 Ch= H-1, H-2 - Atwater Kent Mfg. Co.;

• Shape
• Console, Highboy (legs > 50 %).

• Notes
• Highboy on stretcher base; can be fitted with Chassis H-1 or H-2;

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

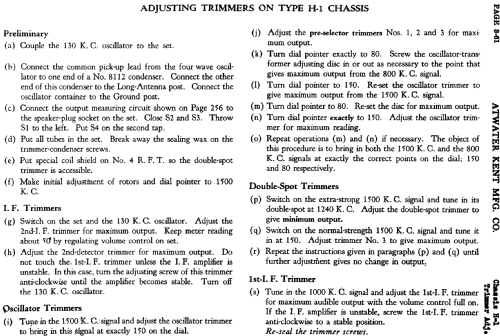

• Literature/Schematics (1)
• - - Manufacturers Literature
