• Year
  • 1970
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 147736

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

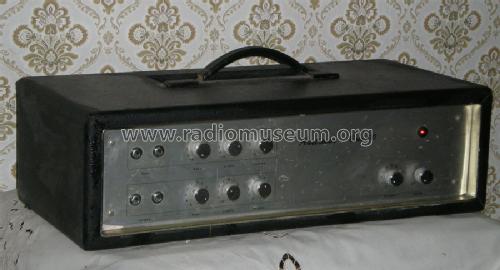

  • Model: Bass 100 - Austrovox, Wien 7
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 590 x 180 x 270 mm / 23.2 x 7.1 x 10.6 inch
  • Notes
  • Bassverstärker; 2 Kanäle getrennt regelbar.
    Gefertigt von Weiss & Kadlec.
  • Net weight (2.2 lb = 1 kg)
  • 12 kg / 26 lb 6.9 oz (26.432 lb)
  • Price in first year of sale
  • 5,250.00 ATS
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Austrovox-Schaltplan vom 13.1.70)
  • Author
  • Model page created by Albert Weiss. See "Data change" for further contributors.
