• Year
  • 1957 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 146394

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Number of Transistors
  • 1
  • Main principle
  • Superheterodyne (common); ZF/IF 265 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: BP-668 - Automatic Radio Mfg. Co.;
  • Shape
  • Chassis only or for «building in»
  • Notes

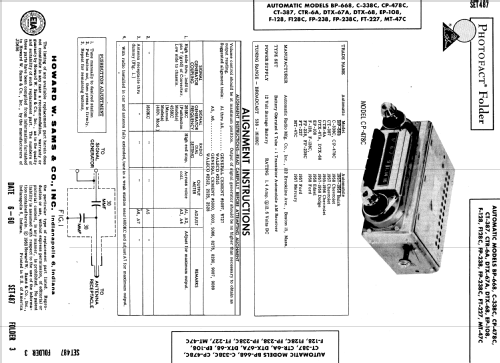

  • Sams photofact set 487 folder 3 date 6-60 features the Automatic radio models BP-668 (for 1957-58 Buick), C-338C, CP-478C (for 1958 Chevrolet), CT-387 (for 1957 Chevrolet), CTR-6A (for 1955-56 Chevrolet), DTX-67A, DTX-68 (for 1957-58 Dodge), EP-108 (for 1958 Edsel); F-128, F-128C (for 1958 Ford), FP-238, FP238C, FT-227 (for 1957 Ford) and MT-47C (for 1957 Mercury) as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
