• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 128501

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / AC/DC 115-125 / 9 & 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

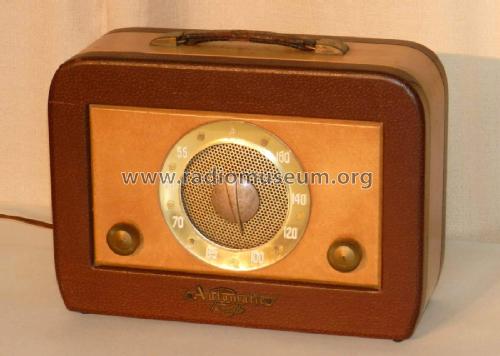

  • Model: C51 - Automatic Radio Mfg. Co.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

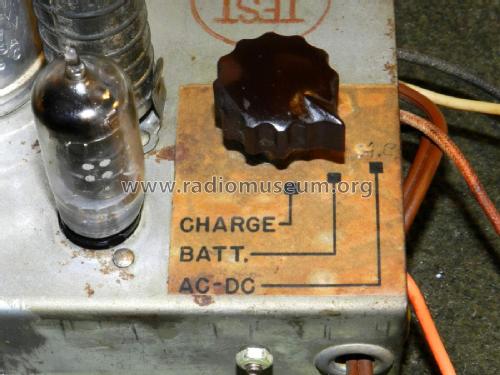

  • The Automatic Model C-51 is a three power portable Superheterodyne receiver. It is for two batteries of 4.5 V Eveready 746 or Burgess G3 plus two B-Batteries Eveready 482 or Burgess M30.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
