- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33794
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 117 / 90 & 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 inch = 11.4 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: C-60 - Automatic Radio Mfg. Co.;
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- The model Automatic C-60 is a three power portable Superheterodyne receiver. Large built-in Automatiscope loop and equipped with Automatic patented battery rejuvenator.
- Price in first year of sale
- 37.95 $
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)

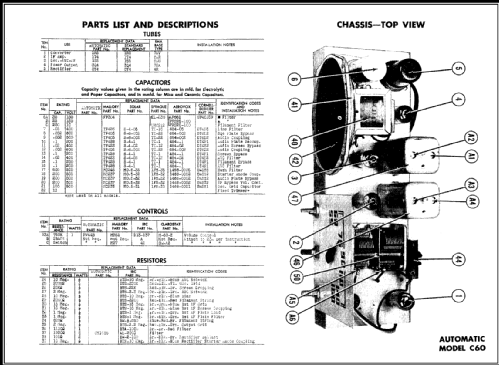

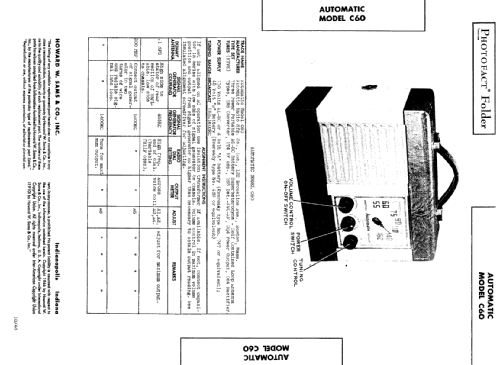

- Photofact Folder, Howard W. SAMS (Set 5, Folder 465-20)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (March 1946 page 93. May 1946 page 20.)
