• Country
• Switzerland

• Manufacturer / Brand
• Autophon AG (inkl. Téléphonie SA); Solothurn

• Year
• 1933/1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 11289

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• E449 E449 E444 E443H 1561

• Main principle
• Superheterodyne (common); ZF/IF 130 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

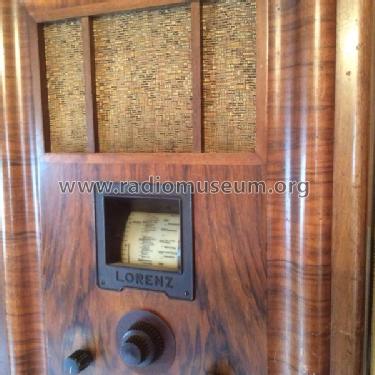

• Model: Lorenz-Rex REX - Autophon AG inkl. Téléphonie

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 400 x 485 x 270 mm / 15.7 x 19.1 x 10.6 inch

• Notes
• 1100/RD635*

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Die Tungsram-Tabellen führen das Modell auf.
