Beocenter 2100 2441

Beocenter 2100 2441; Bang & Olufsen B&O; (ID = 412698) Radio Beocenter 2100 2441; Bang & Olufsen B&O; (ID = 412700) Radio
Beocenter 2100 2441; Bang & Olufsen B&O; (ID = 412705) Radio Beocenter 2100 2441; Bang & Olufsen B&O; (ID = 412704) Radio
Use red slider bar for more.

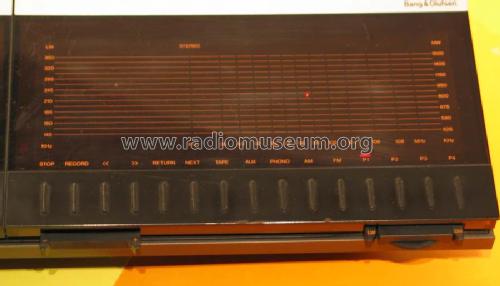

Beocenter 2100 2441; Bang & Olufsen B&O; (ID = 412698) Radio
Bang & Olufsen B&O;: Beocenter 2100 2441 [Radio] ID = 412698 900x400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beocenter 2100 2441, Bang & Olufsen (B&O); Struer:
DK_Bang & Olufsen_Beocenter2100

Country:  Denmark
Manufacturer / Brand:  Bang & Olufsen (B&O); Struer
Brand

B&O
Year: 1985–1988 Type: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Beocenter 2100 2441 - Bang & Olufsen B&O; Struer
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 640 x 95 x 330 mm / 25.2 x 3.7 x 13 inch
Notes Frequency coverage: LW 147-350 kHz, MW 520-1610 kHz, FM 87.5-108 MHz; 4 FM preset. Power output RMS 2× 25 W/4 Ω (2× 20 W/8 Ω).
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data - - Data from my own collection
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Georges Werts. See "Data change" for further contributors.
