• Year
  • 1976
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 81820

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 18
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 9 AM circuit(s)     13 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

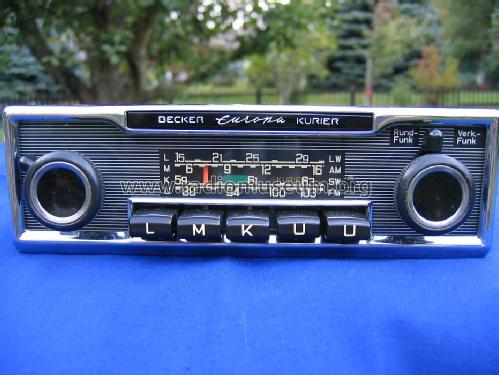

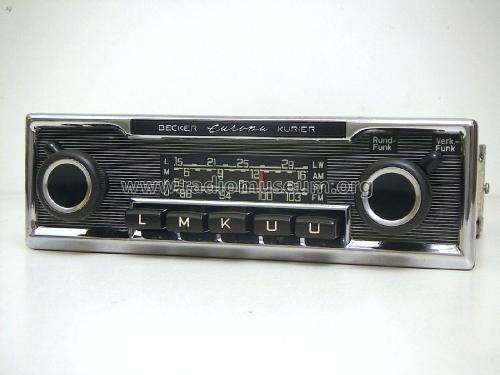

  • Model: Europa Kurier [ab L580001] - Becker, Max Egon,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 42 x 117 mm / 7.1 x 1.7 x 4.6 inch
  • Notes
  • 5 W on single speaker, 7 W with two speakers.
    ICs: MC1310P, MC1310P;
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • Dániel József, Autórádiók szervizkönyve, Bp. 1988.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
