• Year
  • 1954 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 81918

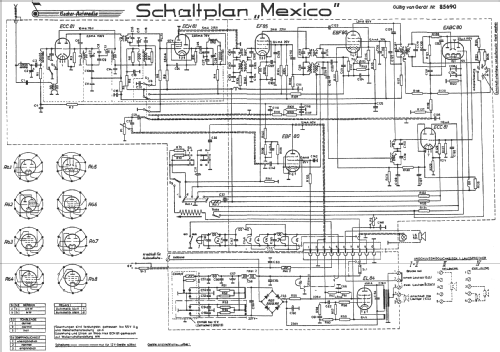

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

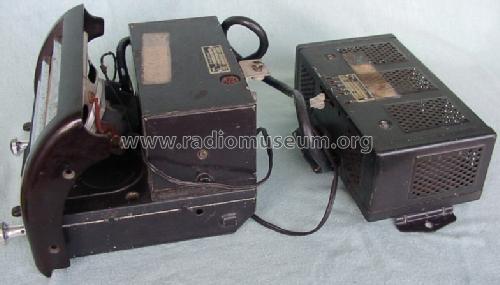

  • Model: Mexico [ab 85690] - Becker, Max Egon,
  • Shape
  • Chassis only or for «building in»
  • Notes
  • Gleichrichter: 300B100, Zerhacker: C600/6, C300/12.
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
