• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1956–1961

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 20928

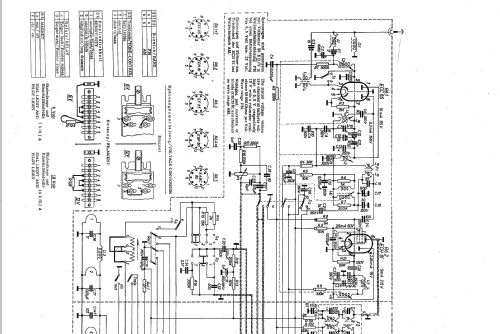

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• ECC85 ECH81 EF85 EBF80 EABC80 EBF80 ECC85 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Mexico [ab 941280] - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Notes

• Auch in Kat. 1957/58 Nachfolger = TG

  Umrichter E (Zerhacker) verbaut.

• Price in first year of sale
• 585.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (4)
• -- Schematic
