Radiobell 540
Bell Telephone Mfg. Co. (Radiobell); Antwerp
- Country
- Belgium
- Manufacturer / Brand
- Bell Telephone Mfg. Co. (Radiobell); Antwerp
- Year
- 1958 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223791
-
- Brand: Radiobell

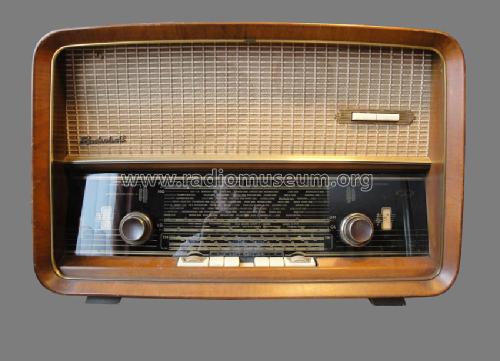

Picture couretsy Jan Roosen. Thanks.

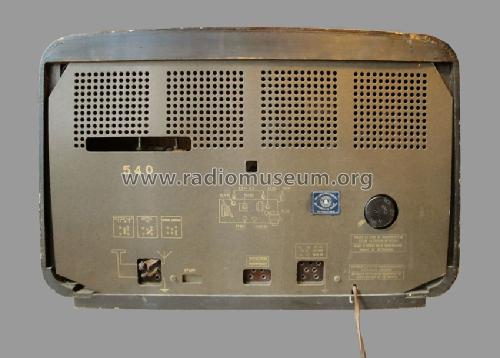

Picture couretsy Jan Roosen. Thanks.

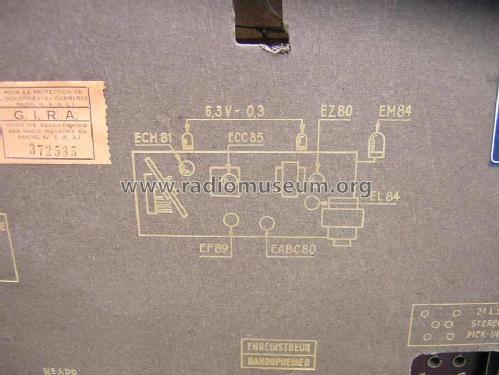

Picture courtesy Jan Roosen. Thanks.
Picture courtesy Jan Roosen. Thanks.
Picture courtesy Jan Roosen. Thanks.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 420/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 115; 130; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiobell 540 - Bell Telephone Mfg. Co.
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 610 x 390 x 270 mm / 24 x 15.4 x 10.6 inch
- Notes
-
Orientable ferrite antenna and FM dipole built in. 4 speakers: two tweeters (left and right), one high-midrange (round) and one broadband (elliptical), both to the front.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Jean-Paul Moriamé. See "Data change" for further contributors.
