Radiobell 538 (538A) 6A7

Radiobell 538 ; Bell Telephone (ID = 1058558) Radio
Radiobell 538 ; Bell Telephone (ID = 1822014) Radio Radiobell 538 ; Bell Telephone (ID = 1058954) Radio
Radiobell 538 ; Bell Telephone (ID = 1058955) Radio Radiobell 538 ; Bell Telephone (ID = 1058958) Radio
Radiobell 538 ; Bell Telephone (ID = 1057818) Radio Radiobell 538 ; Bell Telephone (ID = 1590540) Radio
Radiobell 538 ; Bell Telephone (ID = 1590541) Radio Radiobell 538 ; Bell Telephone (ID = 1590542) Radio
Use red slider bar for more.
Radiobell 538 ; Bell Telephone (ID = 1822014) Radio
Bell Telephone: Radiobell 538 [Radio] ID = 1822014 933x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiobell 538 (538A) 6A7, Bell Telephone Manufacturing (Radiobell, Standard); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Manufacturing (Radiobell, Standard); Antwerp
Brand

Radiobell
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 78 75 6B5 6G5 or 6H5 80
Main principle Super-Heterodyne (Super in general); ZF/IF 142/145 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115; 125; 135; 150; 225; 250 & 0,9 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiobell 538 [6A7] - Bell Telephone Manufacturing
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 380 x 280 mm / 23.6 x 15 x 11 inch
Notes Codex J.V. AS4737.
See Radiobell Standard Ekko 538A (export version).
Price in first year of sale 2,565.00 BFR
Source of data Manuel de la Radio 1940, van Cortenberghe
Mentioned in Radio Schakelingen (J.G.R. van Dijck)
Literature/Schematics (1) Brans, P.H. Radio Schema's, Antwerpen (1943 deel II)

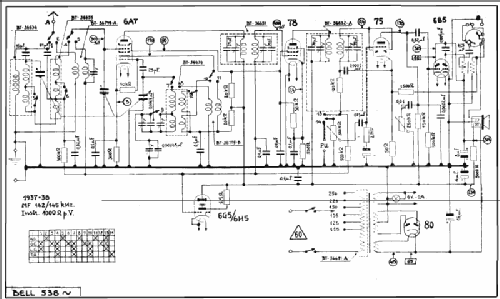

Literature/Schematics (4) -- Schematic

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
