526MB ; Bendix Radio, (ID = 836417) Radio

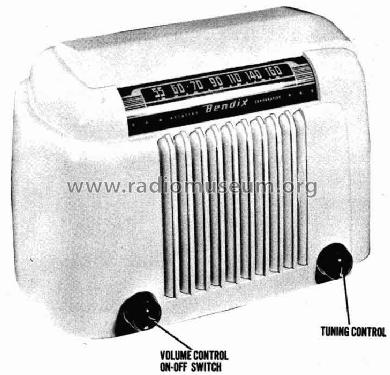

Bendix Radio,: 526MB [Radio] ID = 836417 578x442
Select picture or schematic to display from thumbnails on the right and click for download.
For model 526MB, Bendix Radio, Baltimore:
Mit freundlicher Genehmigung der Bendix Radio Foundation

Country:  United States of America (USA)
Manufacturer / Brand:  Bendix Radio, Baltimore
Year: 1947/1948 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50B5 35W4
Principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1.88 W (unknown quality)
from Radiomuseum.org Model: 526MB - Bendix Radio, Baltimore
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11.3 x 7 x 7.25 inch / 287 x 178 x 184 mm
Notes The Bendix models 526MA (cabinet brown plastic, 526MB (ivory plastic) and 526MC (choice of special colors) are the followers of the same designations except letter M. They are AC-DC operated superheterodynes with loop antenna.

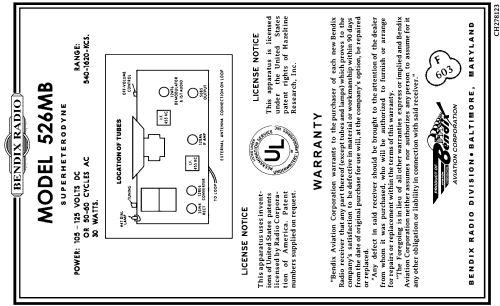

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 12-47, set 29, folder 4719-3)

Model page created by Ernst Erb. See "Data change" for further contributors.
