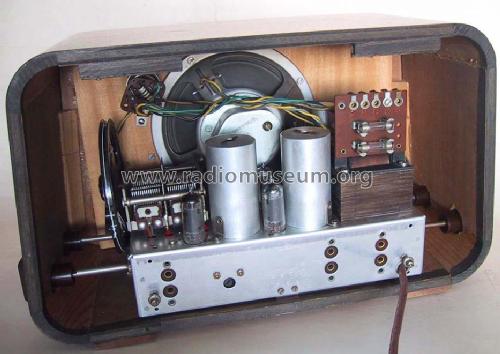

5202; Biennophone; Marke (ID = 161397) Radio 5202; Biennophone; Marke (ID = 17359) Radio
5202; Biennophone; Marke (ID = 17360) Radio 5202; Biennophone; Marke (ID = 56292) Radio
5202; Biennophone; Marke (ID = 17135) Radio 5202; Biennophone; Marke (ID = 798903) Radio
Use red slider bar for more.
5202; Biennophone; Marke (ID = 161397) Radio
Biennophone; Marke: 5202 [Radio] ID = 161397 834x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5202, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1952/1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6BE6 6BA6 6AT6 6AQ5 EM34 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: 5202 - Biennophone; Marke
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 395 x 242 x 180 mm / 15.6 x 9.5 x 7.1 inch
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
