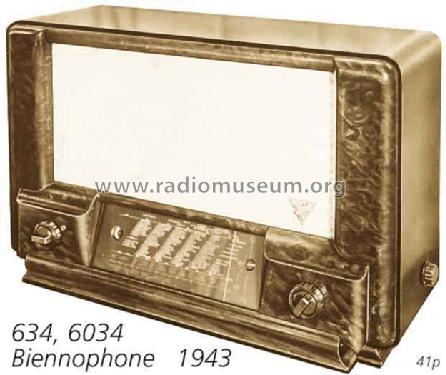

634; Biennophone; Marke (ID = 709363) Radio
Biennophone; Marke: 634 [Radio] ID = 709363 625x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model 634, Biennophone; (Marke):
Bild zum gleich aussehenden Modell automatisch kopiert statt wie bisher verknüpft (05.Jan.2010 EE).

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1943/1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF9 ECH3 EBF2 EF9 EM4 EL3 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 470 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 634 - Biennophone; Marke
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 600 x 385 x 240 mm / 23.6 x 15.2 x 9.4 inch
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 655.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
