Bernina-Stereo 10HH

Bernina-Stereo 10HH; Biennophone; Marke (ID = 2140405) Radio

Bernina-Stereo 10HH; Biennophone; Marke (ID = 2140407) Radio

Bernina-Stereo 10HH; Biennophone; Marke (ID = 2140408) Radio
Bernina-Stereo 10HH; Biennophone; Marke (ID = 231995) Radio Bernina-Stereo 10HH; Biennophone; Marke (ID = 150678) Radio
Bernina-Stereo 10HH; Biennophone; Marke (ID = 150679) Radio Bernina-Stereo 10HH; Biennophone; Marke (ID = 231997) Radio
Use red slider bar for more.
Bernina-Stereo 10HH; Biennophone; Marke (ID = 231995) Radio
Biennophone; Marke: Bernina-Stereo 10HH [Radio] ID = 231995 768x700

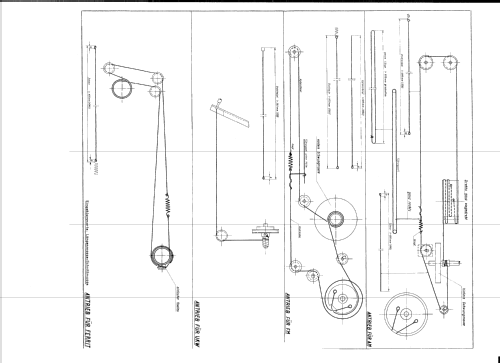

Select picture or schematic to display from thumbnails on the right and click for download.
For model Bernina-Stereo 10HH, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1966/1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EF89 EF85 EMM803 ECC808 EL84 EL84
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer); Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Bernina-Stereo 10HH - Biennophone; Marke
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 662 x 336 x 330 mm / 26.1 x 13.2 x 13 inch
Notes NF-Stereo. 2 Ovallautsprecher, Anschlüsse für FM-Stereo-Multiplexer, HF-TR, TB und Zusatz-LS. Plattenspieler Philips Typ 22GC 032/16 (33-78 Upm). Zwei Skalenlampen 6.3V/0.3A.
Price in first year of sale 675.00 CHF
Collectors' prices
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Herbert Odermatt † 26.Nov.05. See "Data change" for further contributors.



All listed radios etc. from Biennophone; (Marke)
Here you find 493 models, 267 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
