Gandria 03-HH

Gandria 03-HH; Biennophone; Marke (ID = 117430) Radio
Use red slider bar for more.
Gandria 03-HH; Biennophone; Marke (ID = 117430) Radio
Biennophone; Marke: Gandria 03-HH [Radio] ID = 117430 567x586
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gandria 03-HH, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EBF89 ECL86 DM70
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.

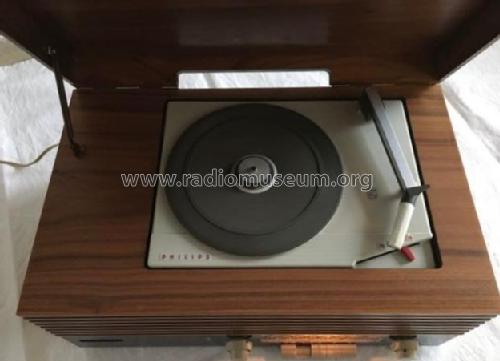

Details Record Player (perh.Changer)
Power type and voltage 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Gandria 03-HH - Biennophone; Marke
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 242 x 300 mm / 19.3 x 9.5 x 11.8 inch
Notes Brückengleichrichter & 2 Dioden SFD115.
Price in first year of sale 475.00 SFR
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Markus Meier. See "Data change" for further contributors.
