Vevey 6205

Vevey 6205; Biennophone; Marke (ID = 117448) Radio Vevey 6205; Biennophone; Marke (ID = 117449) Radio
Vevey 6205; Biennophone; Marke (ID = 1607162) Radio Vevey 6205; Biennophone; Marke (ID = 1613729) Radio
Vevey 6205; Biennophone; Marke (ID = 1613730) Radio Vevey 6205; Biennophone; Marke (ID = 1613731) Radio
Vevey 6205; Biennophone; Marke (ID = 1613732) Radio
Use red slider bar for more.

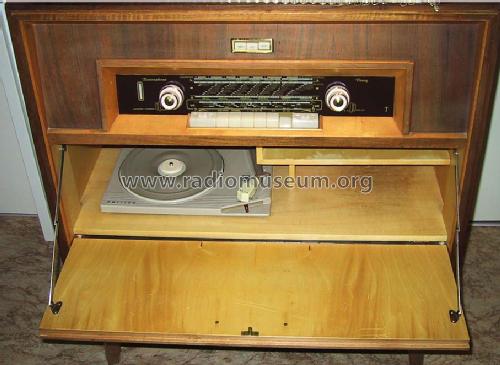

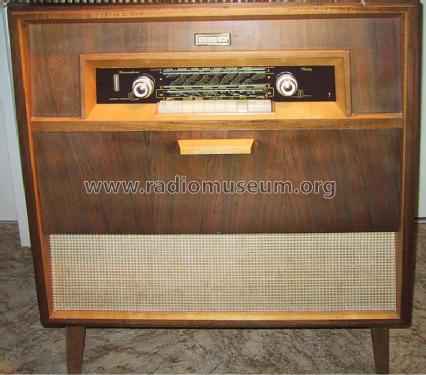

Vevey 6205; Biennophone; Marke (ID = 117448) Radio
Biennophone; Marke: Vevey 6205 [Radio] ID = 117448 797x700

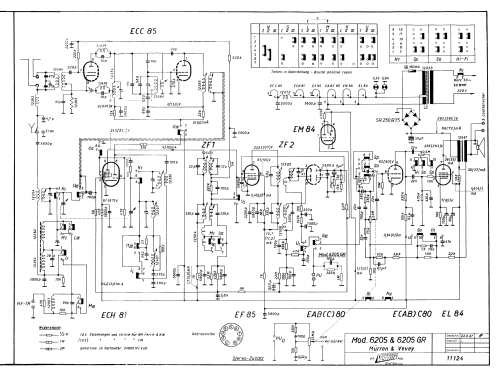

Select picture or schematic to display from thumbnails on the right and click for download.
For model Vevey 6205, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 EABC80 EM84 EL84
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Vevey 6205 - Biennophone; Marke
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 710 x 810 x 380 mm / 28 x 31.9 x 15 inch
Price in first year of sale 695.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Biennophone; (Marke)
Here you find 493 models, 267 with images and 300 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
