Zermatt Gr 5508

Zermatt Gr 5508; Biennophone; Marke (ID = 80321) Radio Zermatt Gr 5508; Biennophone; Marke (ID = 51944) Radio
Use red slider bar for more.
Zermatt Gr 5508; Biennophone; Marke (ID = 80321) Radio
Biennophone; Marke: Zermatt Gr 5508 [Radio] ID = 80321 929x665

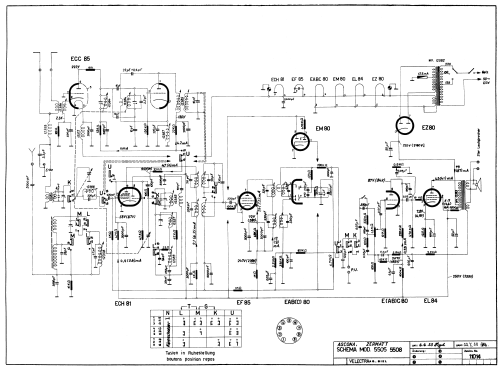

Select picture or schematic to display from thumbnails on the right and click for download.
For model Zermatt Gr 5508, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC85 ECH81 EF85 EABC80 EM80 EL84 EZ80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 125; 150; 220; Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Zermatt Gr 5508 - Biennophone; Marke
Material Wooden case
Dimensions (WHD) 530 x 377 x 330 mm / 20.9 x 14.8 x 13 inch
Net weight (2.2 lb = 1 kg) 11.4 kg / 25 lb 1.8 oz (25.11 lb)
Price in first year of sale 595.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Biennophone; (Marke)
Here you find 492 models, 267 with images and 295 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
